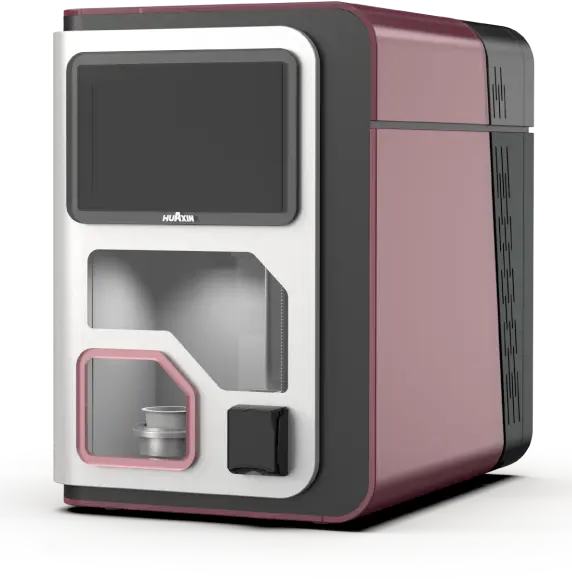

INTELLIGENT FULLY AUTOMATIC
ICE CREAM MACHINE

Characteristic 01.

SIMPLE OPERATION

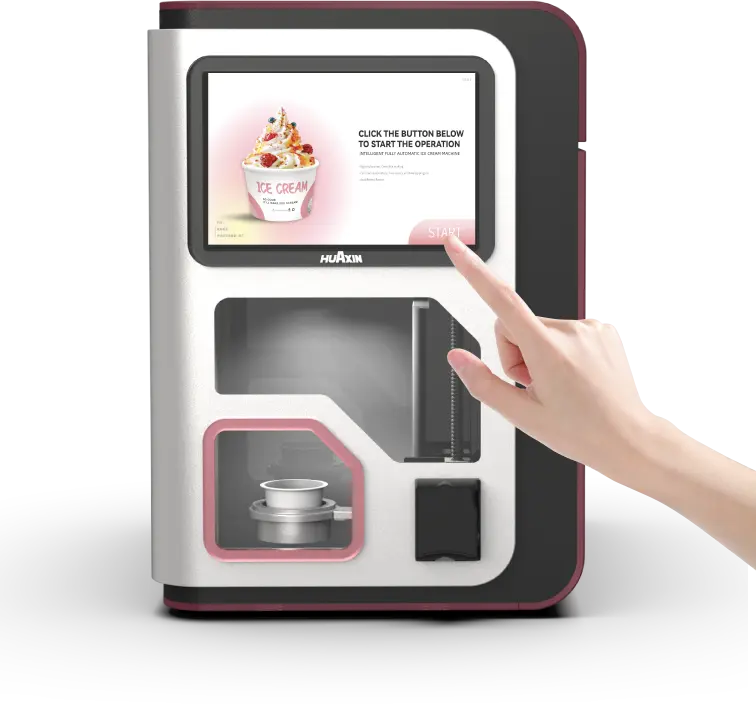

Just tap the screen and the machine will automatically complete the entire ice cream making process.
No need for dedicated training or supervision to save time and labor costs. It's simple, convenient and fast.
Built-in one-touch cleaning and fault detection.

Characteristic 02.

DATA MONITORING
AND REMOTE CONTROL

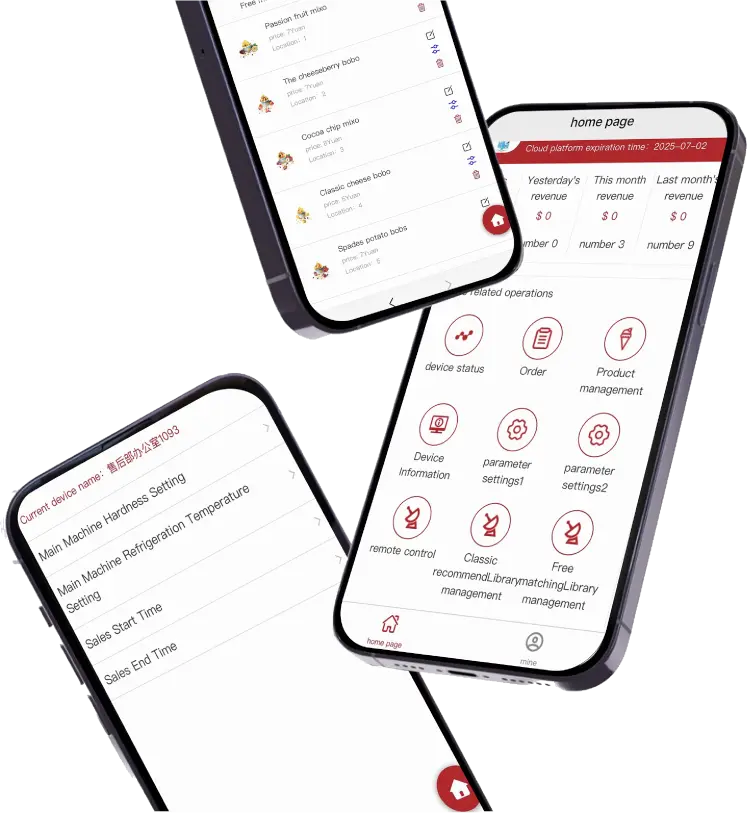

Real-time monitoring of ingredients consumption datas, machine status, and sales datas.
Remotely operate the machine to make ice cream, modify and set related parameters through the mobile phone app such as selling price and operating parameters.

Characteristic 03.

INTEGRATED PAYMENT
SYSTEM

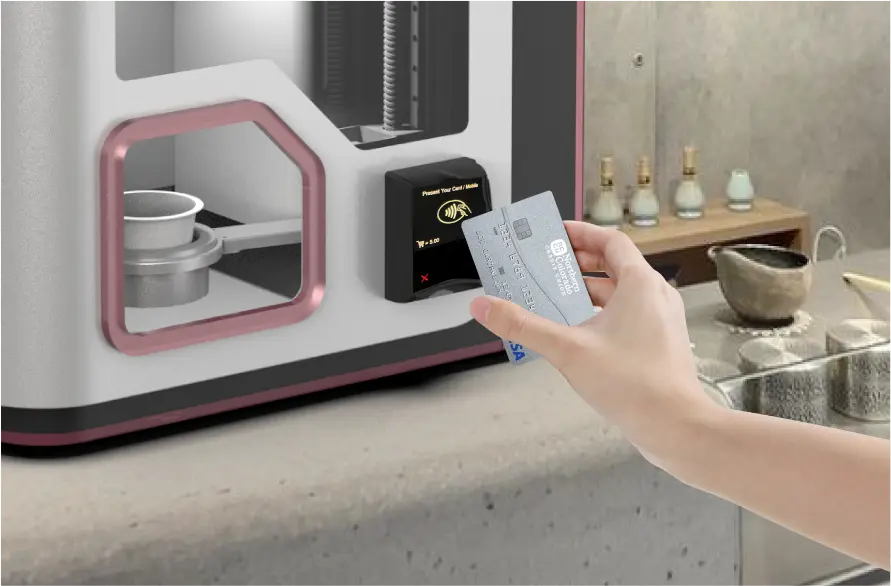

The machine supports code scanning and card payment. Don't need to install payment devices and maximize space utilization.

Characteristic 04.

VISIBLE WINDOW DESIGN
AND DIY FLAVORS

The machine uses a visual window, which can let customers learn the production process of ice cream and give a great sense of participation.
One kind of ice cream ingredient, two kinds of small toppings and two kinds of jam to DIY with more than 10 kinds of flavors.
Ice cream is rich, smooth and creamy.

Characteristic 05.

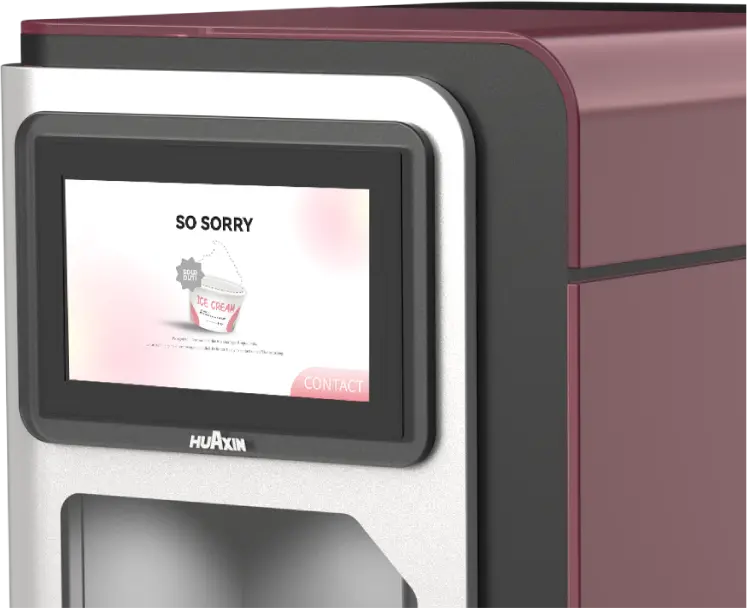

STATUS ALERT

The machine comes with ingredients shortage reminder to ensure the normal operation of the machine.
Real-time reminder of ingredients status to ensure ingrediens are in the best condition.
The machine has remote fault alert function.

Characteristic 06.

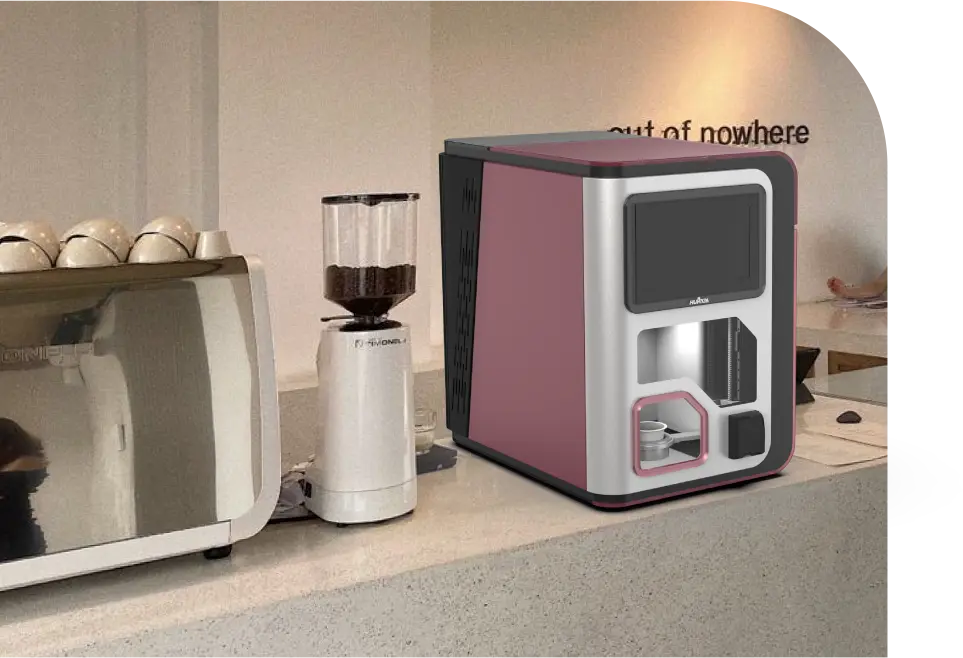

SMALL FOOTPRINT AND
TRAFFIC SECRET

The machine size is 560mm* 826mm* 812mm, occupying an area of only 0.46㎡.

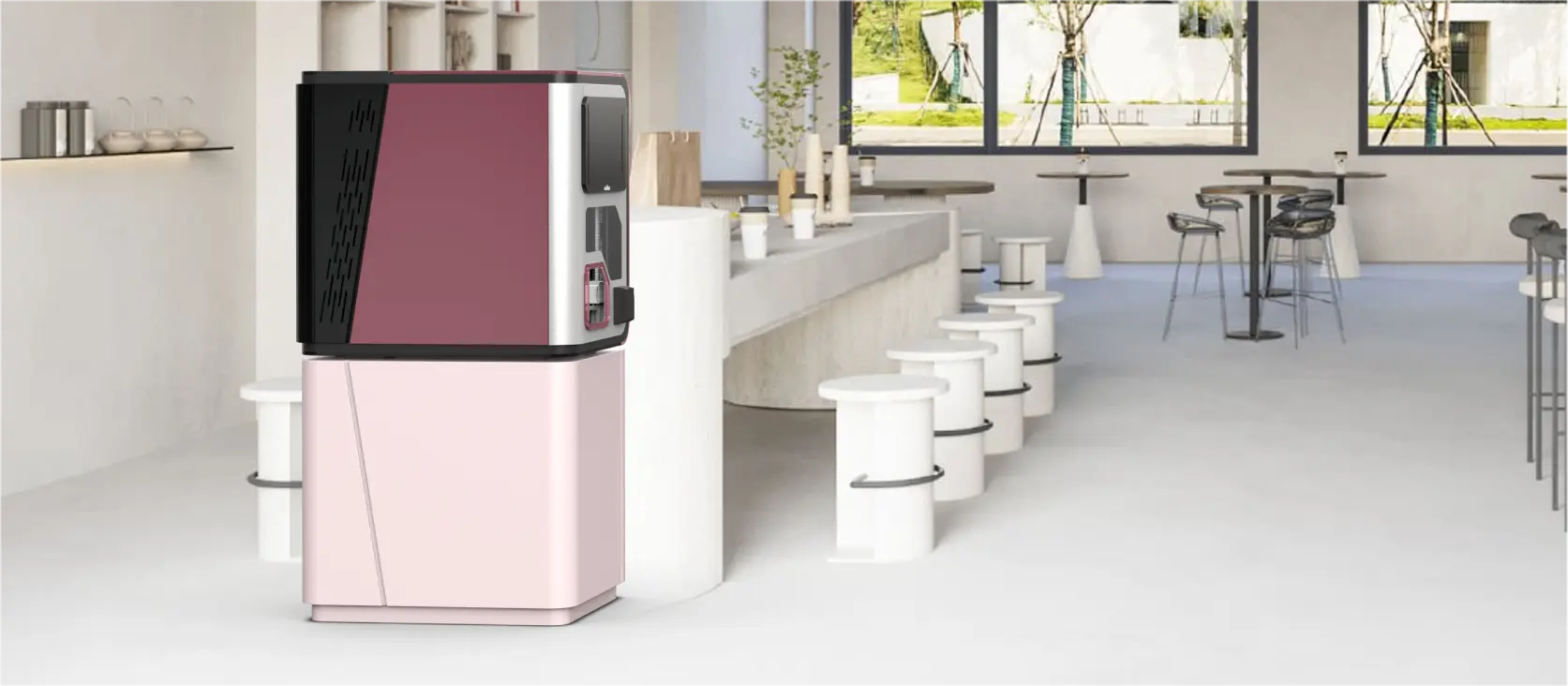

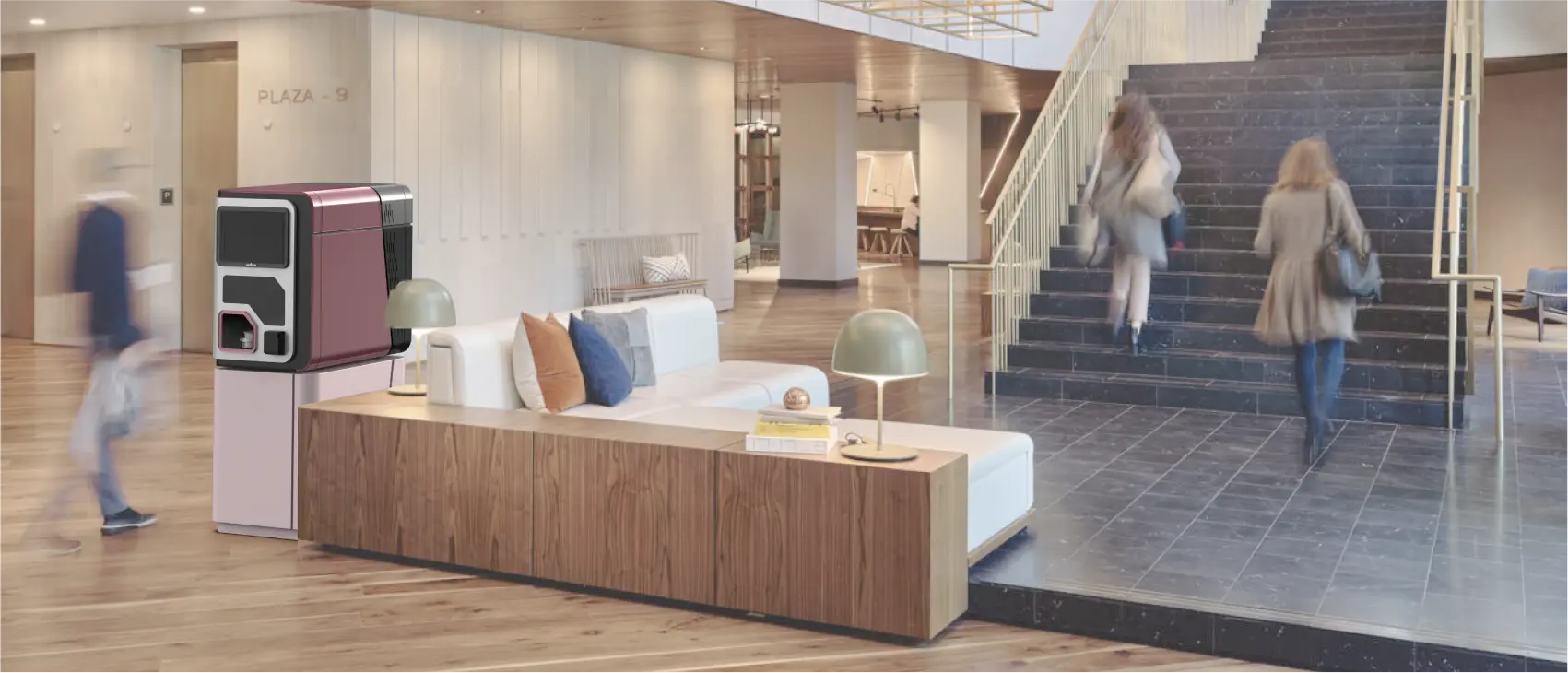

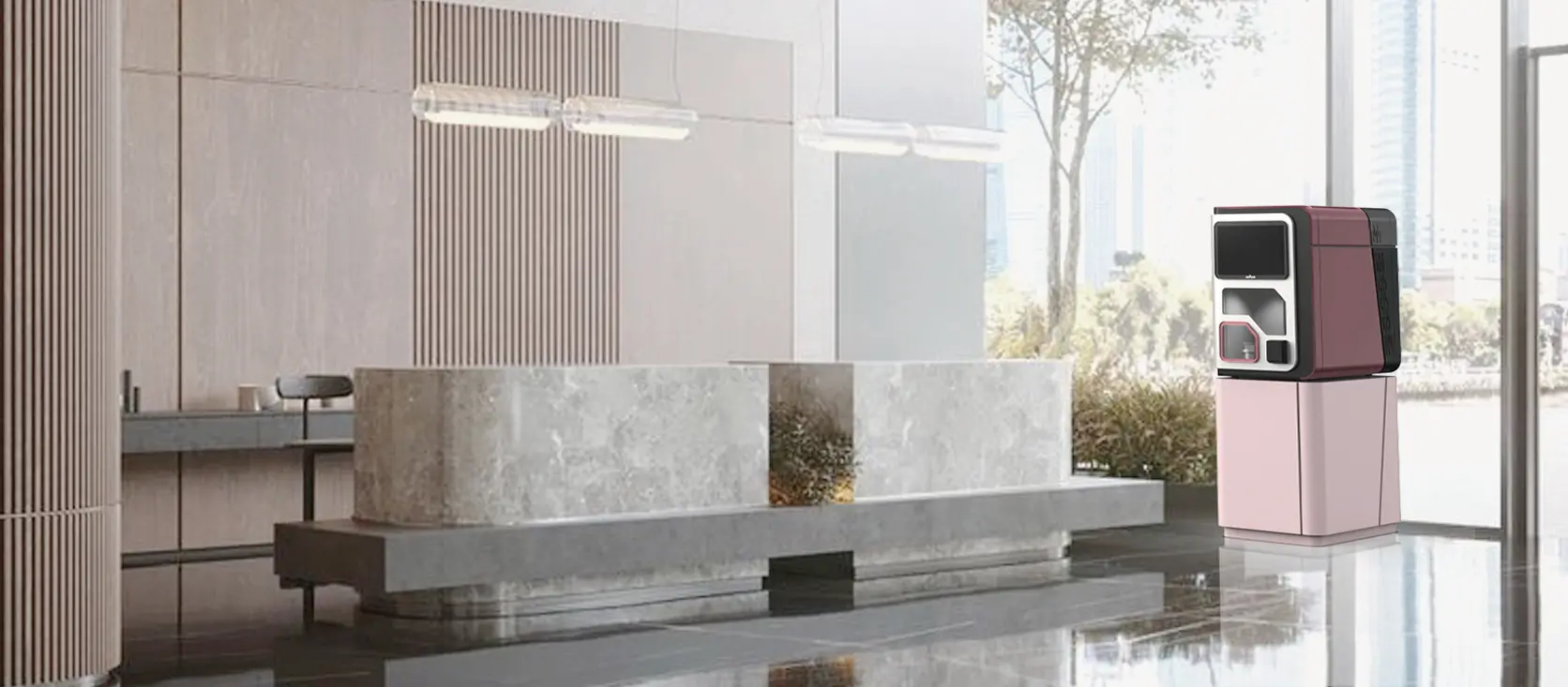

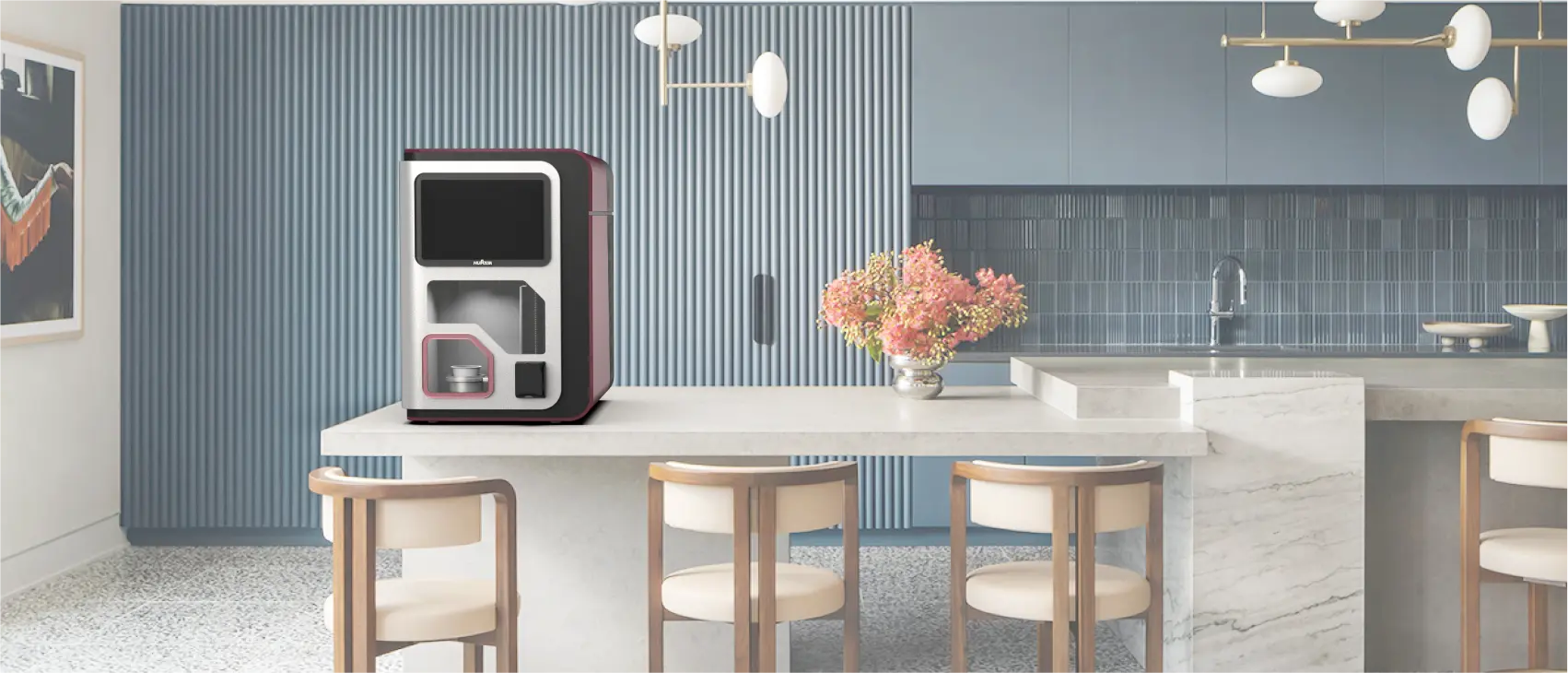

The machine comes with a partner - storage shelf, so it can be placed in various environments.
The appearance and automatic operation of the machine can attract many customers.

STRENGTH IS NOT ONLY ONE-SIDED

AUTOMATIC SET-UP

Set operating parameters and operating mode.

ENCLOSED DESIGN

Set operating parameters and operating mode.

TECHNOLOGIES

Ensure freshness and good taste of ice cream.

STABILITY

High stability and low failure rate. Obtained patents and certifications.

PROFESSIONAL

Professional and experienced team promptly reply.
DETAL DISPLAY

PRODUCT PARAMETERS

product
Intelligent Fully Automatic
Ice Cream Machine
model
Size
L560mm*W826mm*H812mm
Floor area
0.46㎡
Weight
230kg
Screen Size
13.3 inch
Flavor
One milk syrup,
two toppings and two sauces to DIY
Time of Making
No less than 25 seconds
Number of containable Cups
32
Material of Cup
Paper cup/customized paper plastic cup
Capacity of Milk Syrup
10L
Rated Voltage/Frequency/Power
220V 50HZ/220V 60HZ
110V 60HZ(customizable)
Material of Food Container
304 stainless steel,food grade pp,food grade silicone hose
Main Strucure
International metal plate custom processing
Compressor
Embraco compressor
Worm Reducer
Worm and worm wheel
Pump
High expansion rate suitable for ice cream machines
Motor
Servo motor
Servo motor
8A
Refrigerant
R404a
Switching Power
Leakage protection switch
Sensor
International brand OMRON
LCD
Listed company BOE
Switching Power Supply Brand
First-line brand Taiwan Mean Well
Power Cable
2.5 square*3 core power cable
First Forming Time
No less than 15 min
Communication Interface1
rs232/ MDB/ 485 communication
Master Control
2 core ARM new A17 core chip
Android 7.1 system
Noise Level
80 DB
